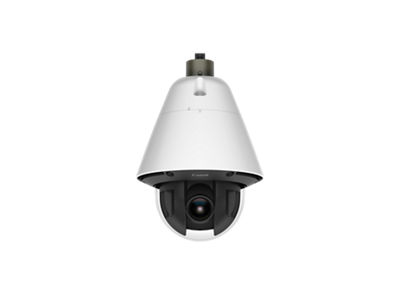

VB-R11VE
Get started with these quick links.
DOWNLOADS
2. Select the Version
- Windows 11
- Windows 10 (x64)
- Windows 10
- Windows 8.1 (x64)
- Windows 8.1
- Windows 8 (x64)
- Windows 8
- Windows 7 (x64)
- Windows 7
- Windows Vista (x64)
- Windows Vista
- Windows Me
- Windows XP (x64)
- Windows XP
- Windows 98
- Windows 95
- Windows Server 2022
- Windows Server 2019 (x64)
- Windows Server 2016 (x64)
- Windows Server 2012 R2 (x64)
- Windows Server 2012 (x64)
- Windows Server 2008 R2 (x64)
- Windows Server 2008 (x64)
- Windows Server 2008
- Windows Server 2003 R2 (x64)
- Windows Server 2003 (x64)
- Windows Server 2003 R2
- Windows Server 2003
- macOS Sequoia v15
- macOS Sonoma v14
- macOS Ventura v13
- macOS Monterey v12
- macOS Big Sur v11.0
- macOS Catalina v10.15
- macOS Mojave v10.14
- macOS High Sierra v10.13
- macOS Sierra v10.12
- OS X El Capitan v10.11
- OS X Yosemite v10.10
- OS X Mavericks v10.9
- OS X Mountain Lion v10.8
- OS X Lion v10.7
- Mac OS X Snow Leopard v10.6
- Mac OS X v10.1
- Mac OS 9
- Linux ARM
- Linux MIPS
- Linux 64bit
- Linux 32bit
- Windows Server 2025
- Windows NT
- Linux
3. Software and Driver Results
0 of 0
Results will appear after selecting an Operating System and Version above.
File Name
Dome Unit DU10-S-VB Installation Guide
File Name
Camera Management Tool User Manual
File Name
Mobile Camera Viewer Operation Guide
File Name
Network Camera Operation Guide
File Name
Camera Management Tool User Manual
File Name
Dome Unit DU10-S-VB Installation Guide
File Name
Camera Management Tool User Manual
File Name
Mobile Camera Viewer Operation Guide
File Name
Data Size and Bit Rate Estimates
SETUP & TROUBLESHOOTING
Find answers in our extensive knowledge base with dozens of articles and curated Q&As to help you troubleshoot your issue yourself.
SELECT ERROR CODE
Don’t see your error code? Let us know as we are capturing feedback for research purposes.
PRODUCT INFO
IMAGE SENSOR | 1/3" CMOS (RGB) |
NUMBER OF EFFECTIVE PIXELS | Approx. 1.3 million pixels |
ANALOG VIDEO RESOLUTION | N/A |
ANALOG VIDEO STANDARD | N/A |
ANALOG S/N RATIO | N/A |
SCANNING METHOD | Progressive Scan |
LENS | 30x optical zoom lens with auto focus |
FOCAL LENGTH | 4.4 (W) - 132 mm (T) |
F-NUMBER | F1.4 (W) - F4.6 (T) |
DIGITAL ZOOM | 20x |
HORIZONTAL VIEWING ANGLE | 58.4° (W) - 2.1° (T) |
VERTICAL VIEWING ANGLE | 34.1° (W) - 1.2° (T) |
DAY/NIGHT MODE | Yes |
I/R CUT FILTER | Automatically removable infrared-cut filter |
MIN. SUBJECT ILLUMINATION - DAY (COLOR) | 0.03 lux (F1.4, shutter speed 1/30 sec., when smart shade control is off, 50IRE) |
MIN. SUBJECT ILLUMINATION - NIGHT (MONOCHROME) | 0.002 lux (F1.4, shutter speed 1/30 sec., when smart shade control is off, 50IRE) |
FOCUS | Auto/One-shot
AF/Manual/Fixed at infinity |
SHOOTING DISTANCE | Day Mode: 0.3 m (12 in.) - infinity (W), 2.0m (6.6 ft.) - infinity (T) Night Mode: 1.0 m (3.3 ft.) - infinity (W), 2.0 m (6.6 ft.) - infinity (T) |
SHUTTER SPEED | 1 - 1/16000 sec |
EXPOSURE MODES | Auto/Auto (Flickerless)/Auto (Shutter-priority AE)/Manual (Shutter Speed, Aperture, Gain) |
WHITE BALANCE | Auto/Light Source/Manual Light Source: Daylight Fluorescent/White Fluorescent/Warm Fluorescent/Mercury Lamp/Sodium Lamp/Halogen Lamp Manual: One-shot WB/R Gain/B Gain |
METERING MODES | Center-Weighted/Average/Spot |
EXPOSURE COMPENSATION | 9 levels |
SMART SHADE CONTROL | Auto / Manual / Disable Auto: 3 Levels Manual: 7 Levels |
HAZE COMPENSATION | Auto / Manual / Disable Auto: 3 Levels Manual: 7 Levels |
AGC LIMIT | 6 levels |
IMAGE STABILIZER | Digital (2 Levels) |
PAN ANGLE RANGE | 360°continuous panning |
TILT ANGLE RANGE | 180° (ceiling-mounted position: 0° - 180°) |
ROTATION ANGLE RANGE | N/A |
IR ILLUMINATION RANGE | N/A |
MOVING SPEED | Pan: Max. 450°/sec. Tilt: Max. 450°/sec. |
VIDEO COMPRESSION METHOD | JPEG, H.264 |
BIT RATE CONTROL | Target Bit Rate: 64-16384 kbps |
VIDEO SIZE | JPEG, H.264: 1280 x 720, 640 x 360, 320 x 180 1280 x 960, 640 x 480, 320 x 240 |
VIDEO QUALITY | JPEG, H.264: 10 levels |
FRAME RATE | JPEG: 0.1 - 30 fps H.264: 1/2/3/5/6/10/15/30 fps |
MAXIMUM FRAME RATE | 1280 x 960 : 30fps |
ADSR: AREA-SPECIFIC DATA SIZE REDUCTION | Number of Specified Areas: Max. 8 windows |
I-FRAME INTERVAL | 0.5/1/1.5/2/3/4/5 sec. |
SIMULTANEOUS CLIENT ACCESS | Max. 30 Clients + 1 Admin Client - H.264: Max. 10 Clients |
CAMERA CONTROL | Administrator, Authorized user, Guest user (level of control varies depending on user) |
ACCESS CONTROL | User authority (user name and password), Host Access Restrictions (IPv4, IPv6) |
ENCRYPTED COMMUNICATIONS | SSL/TLS, IPsec |
IEEE 802.1X | EAP-MD5, EAP-TLS, EAP-TTLS, EAP-PEAP |
ONVIF Version | Ver. 2.4.2, Profile G, Profile S |
IPv4 PROTOCOL | TCP/IP, UDP, HTTP, FTP, SNMP (MIB2), SMTP (Client), DHCP (Client), DNS (Client), mDNS,ARP, ICMP, POP3 (Client), NTP (Client), SMTP authentication (POP before SMTP, SMTP-AUTH), AutoIP, RTP/RTCP, RTSP, SSL/TLS, IPsec, WV-HTTP (Canon proprietary), ONVIF (Profile S, Profile G) |
IPv6 PROTOCOL | TCP/IP, UDP, HTTP, FTP, SMTP (Client), DHCPv6 (Client), DNS (Client), mDNS, ICMPv6, POP3 (Client), NTP (Client), SMTP authentication (POP before SMTP, SMTP-AUTH), RTP/RTCP, RTSP,SSL/TLS, IPsec, WV-HTTP (Canon proprietary), ONVIF (Profile S, Profile G) |
AUTO IP | Yes |
AUDIO COMPRESSION METHOD | G.711 µ-law (64 kbps) |
AUDIO COMMUNICATION METHOD | Full-duplex (two-way) - Echo cancellation function compliant RTP, Sound Transfer Protocol by Canon |
AUDIO FILE PLAYBACK | Available (audio files can be played back when an event is triggered by the intelligent function or external device input.) |
PRIVACY MASK | Number of registration: Max. 8 places, Number of mask colors: 1 (select from 9 colors) |
VIEW RESTRICTION | Available |
PRESETS | Number of registers: Max. 256 positions (+Home Position) Items to Reg.: Pan/Tilt/Zoom, Exposure, Smart Shade Control, Focus, White Balance, Video Quality Adjustment, Day/Night, Haze Compensation Number of Preset Tour Route: Max. 5 |
INTELLIGENT FUNCTION - VIDEO | Detection Types: Moving Object Detection, Abandoned Object Detection, Removed Object Detection, Camera Tampering Detection, Passing Detection, Intrusion Detection, and Auto Tracking |
INTELLIGENT FUNCTION - AUDIO | Volume Detection, Scream Detection |
INTELLIGENT FUNCTION - DETECTION SETTINGS | Max. 15 |
INTELLIGENT FUNCTION - VOLUME | Volume Detection |
EVENT TRIGGER TYPE | External Device Input, Intelligent Function (Video), Intelligent Function (Audio), Timer, Day/Night Switch Number of Linked Events: 2 Linked Event Conditions: AND, OR (whether or not there is a sequence to events) |
IMAGE UPLOAD | FTP/HTTP/SMTP (e-mail) |
EVENT NOTIFICATION | HTTP/SMTP (e-mail) |
ON-SCREEN DISPLAY | Available |
IMAGE CROPPING FUNCTION | N/A |
DAYLIGHT SAVINGS TIME | Available |
CUSTOM SETTINGS |
NETWORK TERMINAL | LAN x 1 (RJ45, 100Base-TX (auto/full-duplex/half-duplex)) |
AUDIO INPUT TERMINAL | F3.5 mm (F0.14 in.) mini-jack connector (monaural) Switch LINE IN/MIC IN in the setting page. |
AUDIO OUTPUT TERMINAL | F3.5 mm (F0.14 in.) mini-jack connector (monaural)
LINE OUT (connect to an amplifier speaker) |
EXTERNAL DEVICE I/O TERMINAL | Input x 2, Output x 2 |
ANALOG VIDEO OUT | N/A |
MEMORY CARD TYPE | SD Memory Card, SDHC Memory Card, SDXC Memory Card Compatible |
MEMORY CARD RECORDED CONTENT | Log, Video (Event, Manual, ONVIF, Timer, Upload) |
MEMORY CARD RECORDED FRAME RATE | Frame Rate: Max. 1 fps (JPEG) Max. 30 fps (H.264) |
TEMPERATURE | Operating Temperature Range (including direct sun exposure) : AC: -50°C - +55°C (-58°F - +131°F) PoE+: -35°C - +55°C (-31°F - +131°F) DC, PoE: -10°C - +55°C (+14°F - +131°F) Start-up Temperature Range (including direct sun exposure) : AC, PoE+: -30°C - +55°C (-22°F - +131°F) DC, PoE: -10°C - +55°C (+14°F - +131°F) |
HUMIDITY | 5% - 85% RH (without condensation) |
TEMPERATURE | -30°C - +60°C (-22°F - +140°F) |
HUMIDITY | 5% - 90% RH (without condensation) |
PoE | PoE power supply via LAN connector (IEEE802.3at Type1 PoE/Type2 PoE+ compliant) |
AC ADAPTER | PA-V18 (100 - 240 V AC) (sold separately) |
EXTERNAL POWER SOURCE | 24 V AC/12 V DC |
WITH PoE | Max. approx. 10.1 W |
WITH AC ADAPTER | Adapter PA-V18: Max. approx. 12.7 W (100 V AC)
Max. approx. 12.8 W (240 V AC) |
WITH 12VDC | Max. approx. 11.0 W |
WITH PoE + | Max. approx. 20.8 W |
WITH 24VAC+ | Max. approx. 33.2 W |
DIMENSIONS | (F x H) F229 x 324 mm (F9.02 x 12.76 in.) |
MOUNTING POSITION | Ceiling mount/Surface mount |
HEATER | Built-In |
WEIGHT | Approx. 3530 g (7.79 lb.) |
OUTDOOR READY | Yes |
IP RATING | IP66 rated |
VANDAL RESISTANT | Yes |
IMPACT RESISTANCE | IK10(20J) |
