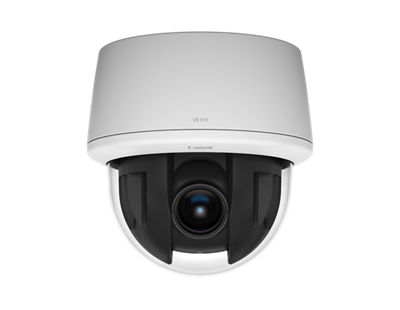

PRODUCT INFO

IMAGE SENSOR 1/3" CMOS (RGB)
NUMBER OF EFFECTIVE PIXELS Approx. 1.3 million pixels
ANALOG VIDEO RESOLUTION
ANALOG VIDEO STANDARD
ANALOG S/N RATIO
SCANNING METHOD Progressive Scan
LENS 30x optical zoom lens with auto focus
FOCAL LENGTH 4.4 (W) - 132 mm (T)
F-NUMBER F1.4 (W) - F4.6 (T)
DIGITAL ZOOM 20x
HORIZONTAL VIEWING ANGLE 58.4 ° (W) - 2.1 ° (T)
VERTICAL VIEWING ANGLE 34.1 ° (W) - 1.2 ° (T)
DAY/NIGHT SWITCH Yes
I/R CUT FILTER Automatically removable infrared-cut filter
MIN. SUBJECT ILLUMINATION - DAY (COLOR) 0.03 lux (F1.4, shutter speed 1/30 sec., when smart shade control is off, 50IRE)
MIN. SUBJECT ILLUMINATION - NIGHT (MONOCHROME) 0.002 lux (F1.4, shutter speed 1/30 sec., when smart shade control is off, 50IRE)
FOCUS MODES Auto/One-shot AF/Manual/Fixed at infinity
SHOOTING DISTANCE Day Mode: 0.3 m (12 in.) - infinity (W), 2.0m (6.6 ft.) - infinity (T)
Night Mode: 1.0 m (3.3 ft.) - infinity (W), 2.0 m (6.6 ft.) - infinity (T)
SHUTTER SPEED 1 - 1/16000 sec.
EXPOSURE MODES Auto/Auto (Flickerless)/Auto (Shutter-priority AE)/Manual (Shutter Speed, Aperture, Gain)
WHITE BALANCE Auto/Light Source/Manual
Light Source: Daylight Fluorescent/White Fluorescent/Warm Fluorescent/Mercury Lamp/Sodium Lamp/Halogen Lamp
Manual: One-shot WB/R Gain/B Gain
METERING MODES Center-Weighted/Average/Spot
EXPOSURE COMPENSATION 9 levels
SMART SHADE CONTROL Auto/Manual/Disable
Auto: 3 levels
Manual: 7 levels
HAZE COMPENSATION Auto/Manual/Disable
Auto: 3 levels
Manual: 7 levels
AGC LIMIT 6 levels
IMAGE STABILIZER Digital (2 Levels)
PAN ANGLE RANGE 360 ° continuous panning
TILT ANGLE RANGE 180 ° (ceiling-mounted position: 0 ° - 180 ° )
ROTATION ANGLE RANGE N/A
IR ILLUMINATION RANGE N/A
MOVING SPEED Pan: Max. 450 ° /sec.
Tilt: Max. 450 ° /sec.
VIDEO COMPRESSION METHOD JPEG, H.264
BIT RATE CONTROL Target Bit Rate: 64-16384 kbps
VIDEO SIZE JPEG, H.264: 1280 x 720, 640 x 360, 320 x 180 1280 x 960, 640 x 480, 320 x 240
VIDEO QUALITY JPEG, H.264: 10 levels
FRAME RATE JPEG: 0.1 - 30 fps
H.264: 1/2/3/5/6/10/15/30 fps
MAXIMUM FRAME RATE 1280 x 960 : 30fps
ADSR: AREA-SPECIFIC DATA SIZE REDUCTION Number of Specified Areas: Max. 8 windows
I-FRAME INTERVAL 0.5/1/1.5/2/3/4/5 sec.
SIMULTANEOUS CLIENT ACCESS Max. 30 Clients + 1 Admin Client - H.264: Max. 10 Clients
CAMERA CONTROL Administrator, Authorized user, Guest user (level of control varies depending on user)
ACCESS CONTROL User authority (user name and password), Host Access Restrictions (IPv4, IPv6)
ENCRYPTED COMMUNICATIONS SSL/TLS, IPsec
IEEE 802.1X EAP-MD5, EAP-TLS, EAP-TTLS, EAP-PEAP
ONVIF Version Ver. 2.4.2, Profile G, Profile S
IPv4 PROTOCOL TCP/IP, UDP, HTTP, FTP, SNMP (MIB2), SMTP (Client), DHCP (Client), DNS (Client), mDNS,ARP, ICMP, POP3 (Client), NTP (Client), SMTP authentication (POP before SMTP, SMTP-AUTH), AutoIP, RTP/RTCP, RTSP, SSL/TLS, IPsec, WV-HTTP (Canon proprietary), ONVIF (Profile S, Profile G)
IPv6 PROTOCOL TCP/IP, UDP, HTTP, FTP, SMTP (Client), DHCPv6 (Client), DNS (Client), mDNS, ICMPv6, POP3 (Client), NTP (Client), SMTP authentication (POP before SMTP, SMTP-AUTH), RTP/RTCP, RTSP,SSL/TLS, IPsec, WV-HTTP (Canon proprietary), ONVIF (Profile S, Profile G)
AUTO IP (LINK-LOCAL) Yes
AUDIO COMPRESSION METHOD G.711 µ-law (64 kbps)
AUDIO COMMUNICATION METHOD Full-duplex (two-way) - Echo cancellation function compliant RTP, Sound Transfer Protocol by Canon
AUDIO FILE PLAYBACK Available (audio files can be played back when an event is triggered by the intelligent function or external device input.)
PRIVACY MASK Number of registration: Max. 8 places, Number of mask colors: 1 (select from 9 colors)
VIEW RESTRICTION Available
PRESETS Number of registers: Max. 256 positions (+Home Position) Items to Reg.: Pan/Tilt/Zoom, Exposure, Smart Shade Control, Focus, White Balance, Video Quality Adjustment, Day/Night, Haze Compensation Number of Preset Tour Route: Max. 5
INTELLIGENT FUNCTION - VIDEO Detection Types: Moving Object Detection, Abandoned Object Detection, Removed Object Detection, Camera Tampering Detection, Passing Detection, Intrusion Detection, and Auto Tracking
INTELLIGENT FUNCTION - AUDIO Volume Detection, Scream Detection
INTELLIGENT FUNCTION - DETECTION SETTINGS Max. 15
EVENT TRIGGER TYPE External Device Input, Intelligent Function (Video), Intelligent Function (Audio), Timer, Day/Night Switch Number of Linked Events: 2 Linked Event Conditions: AND, OR (whether or not there is a sequence to events)
IMAGE UPLOAD FTP/HTTP/SMTP (e-mail)
EVENT NOTIFICATION HTTP/SMTP (e-mail)
ON-SCREEN DISPLAY Available
IMAGE CROPPING FUNCTION N/A
DAYLIGHT SAVINGS TIME Available
CUSTOM SETTINGS
NETWORK TERMINAL LAN x 1 (RJ45, 100Base-TX (auto/full-duplex/half-duplex))
AUDIO INPUT TERMINAL F3.5 mm (F0.14 in.) mini-jack connector (monaural)
Switch LINE IN/MIC IN in the setting page.
AUDIO OUTPUT TERMINAL F3.5 mm (F0.14 in.) mini-jack connector (monaural)
LINE OUT (connect to an amplifier speaker)
EXTERNAL DEVICE I/O TERMINAL Input x 2, Output x 2
ANALOG VIDEO OUT N/A
MEMORY CARD TYPE SD Memory Card, SDHC Memory Card, SDXC Memory Card Compatible
MEMORY CARD RECORDED CONTENT Log, Video (Event, Manual, ONVIF, Timer, Upload)
MEMORY CARD RECORDED FRAME RATE Frame Rate: Max. 1 fps (JPEG) Max. 30 fps (H.264)
TEMPERATURE AC, DC, PoE: -10 ° C - +50 ° C (+14 ° F - +122 ° F)
HUMIDITY 5% - 85% RH (without condensation)
TEMPERATURE -30 ° C - +60 ° C (-22 ° F - +140 ° F)
HUMIDITY 5% - 90% RH (without condensation)
PoE PoE power supply via LAN connector (IEEE802.3at Type1 PoE/Type2 PoE+ compliant)
AC ADAPTER PA-V18 (100 - 240 V AC) (sold separately)
EXTERNAL POWER SOURCE 24 V AC/12 V DC
WITH PoE Max. approx. 9.5 W
WITH AC ADAPTER AC Adapter PA-V18: Max. approx. 9.6 W (100 V AC)
Max. approx. 9.8 W (240 V AC)
WITH 12VDC Max. approx. 8.8 W
WITH PoE + N/A
WITH 24VAC Max. approx. 9.2 W
DIMENSIONS (F x H) F199 x 199 mm (F7.83 x 7.83 in.)
MOUNTING POSITION Ceiling mount
HEATER N/A
WEIGHT Approx. 1990 g (4.39 lb.)
OUTDOOR READY No
IP RATING N/A
VANDAL RESISTANT No
IMPACT RESISTANCE N/A
